Product configurator safetyman® DT3

Select a configuration to your individual needs to receive a custom-tailored offer.

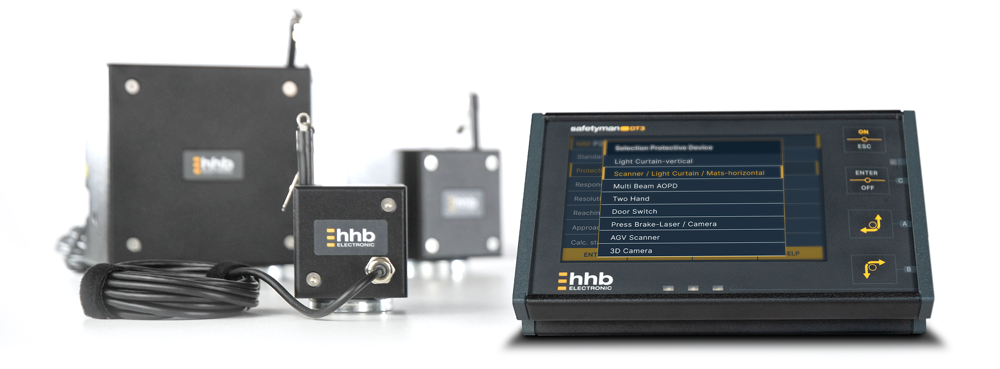

Measuring Device

  • Stop time and distance measurements

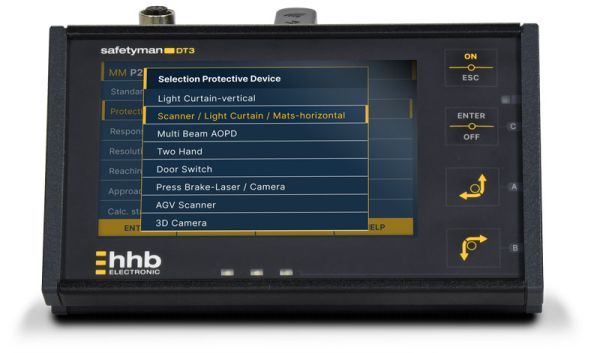

  • Selection of safety devices
  • Calculation of safety distances according to EN/ISO 13855
  • Evaluation of highest velocity
  • Input of machine numbers
  • Memory of all measuring protocols
  • Machinery management Graphical display of measurement curve
  • Velocity measurement
  • RPM recording
  • Multi-lingual operation

Addtitional Modules

  • WLAN 802.11 b/g/n (802.11n, 150 Mbps) 2.4 GHz
  • BT V4.2 – BLE and Classic Bluetooth
  • SD Card 32 GB

The wifi/ bluetooth module connects the DT3 with PCs ,
desktops, smartphones and tablets.

Machine Park Software

Comfortable Windows software with database for the evaluation and analysis of measuring results.

Sensors

Cable Transducer

Cable length 1.25 / 2.0 m 3.0 / 4.5 / 6.0 m 13.0 m
Width 60 mm 80 mm 100 mm
Height 70 mm 90 mm 146 mm
Length 74 mm 82 mm 136 mm
Weight 700 g 1100 g 2420 g
Resolution 0.125 mm

Incl. foot magnet and cable end magnet

For rotational movement

  • Resolution 500 pulses/revolution
  • Diameter approx. 82 mm
  • incl. magnetic base and central arm tensioner

* Size: (W x H x L): 50 x 50 x 140 mm, weight: 0.6 kg
** Size (W x H x L): 80 x 80 x 101 mm, weight: 1.2 kg

For fast rotational motion
Type: retro reflective
Range: 0-3 m
Frequency: up to 1500 Hz

Actuators

The Auto-Hand is an electro-mechanical trigger device for Light curtains, scanners and Two -Hand controls.

Inclusive extensive accessories

Dimensions: (L x W x H): 220 x 35 x35 mm

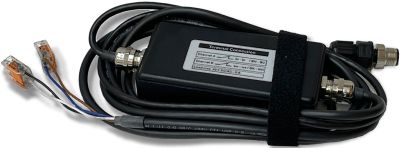

In the Relay Unit 2 normally closed contacts are provided to break the safety circuit, thus allowing the measurement of the stopping time.

2 x Potential-free NC contact

Accessoires

The carrying case offers reliable protection for your safetyman®, actuators and accessories and is your perfect companion for mobile use.

  • Plastic, black
  • rugged
  • with pluck-foam inserts for interior protection of your valuable equipment.
